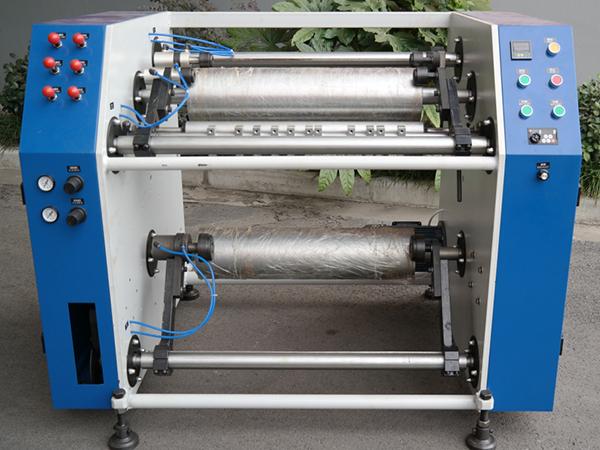

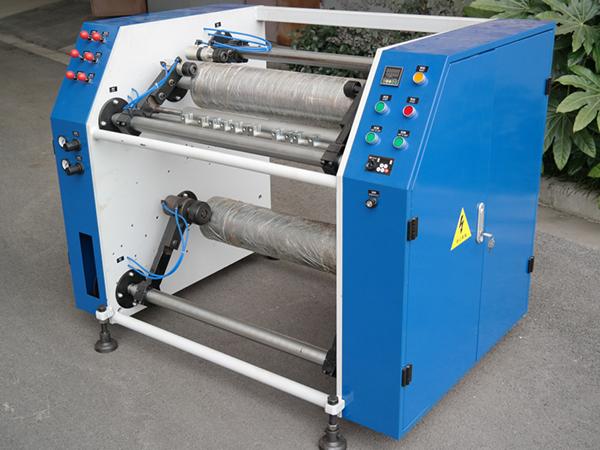

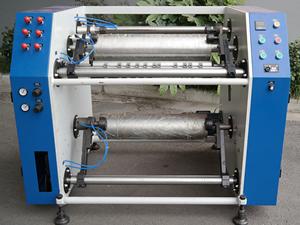

Semi-automatic Slitter Rewinder

  • Semi-automatic Slitter Rewinder
  • Semi-automatic Slitter Rewinder
  • Semi-automatic Slitter Rewinder
  • Semi-automatic Slitter Rewinder

Description

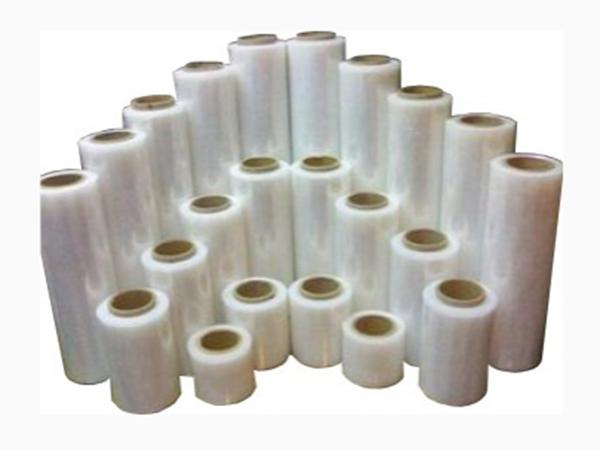

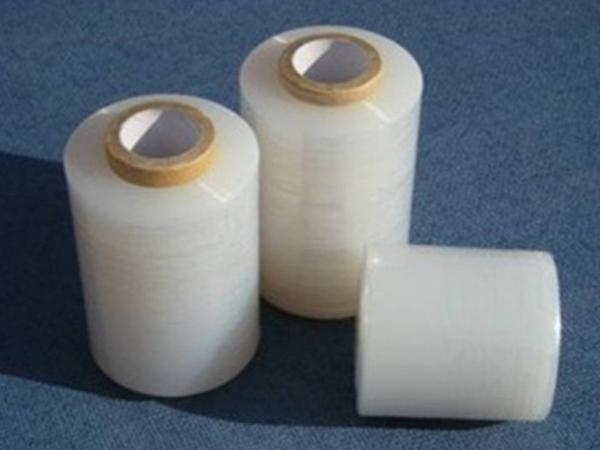

The semi-automatic slitter rewinder has the function of slitting and rewinding. So this slitting rewinding machine can rewind the big roll diameter film into some same and small roll diameter films or silt that into small but different roll diameter films. In addition, this machine can improve the appearance smoothness of coiled material, rectify the split-level and slit the mistake of printing and recombination by slitting or rewinding.

Customer can order our slitter rewinder with certain width such as 500, 600, 800, 1000, 1500. Our slitter rewinder also can do rewinding without mandrel.

Parameters
Type HTR-S500 / HTR-S750 / HTR-S1000
Width of mother roll Max500mm/750mm/1000mm
Width of finished roll Min50mm-Max500mm/750mm/1000mm
Speed 600m/Min
Mother roll diameter 400mm
Finished roll diameter 300mm
Core of mother roll 3"
Core of finished roll 3", 2", 1.5"(width of paper tube≥4mm)
Coreless inflatable shaft 3"
Diameter of coreless film Max150mm
Dimension Depend on different model
Net weight Depend on different model

Features
1. Simple mechanical configuration, easy operation.
2. This slitter rewinder has high revolving speed by frequency converting control.
3. This machine can do rewinding for film without paper core by disassembing and assembing parts of fittings.

Wintech has researched and developed slitting and rewinding machine about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
