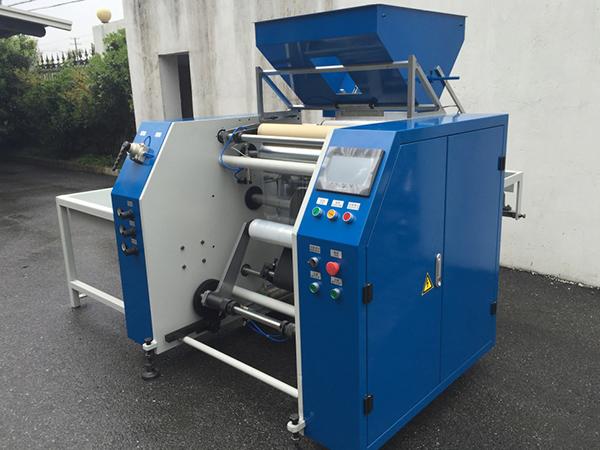

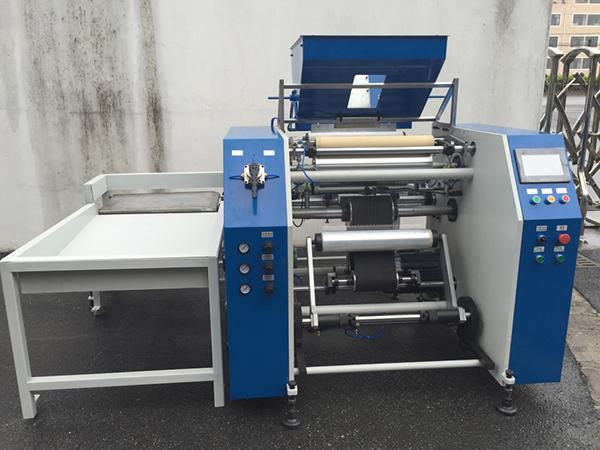

Fully Automatic Perforating and Rewinding Machine

  • Fully Automatic Perforating and Rewinding Machine
  • Fully Automatic Perforating and Rewinding Machine

Application

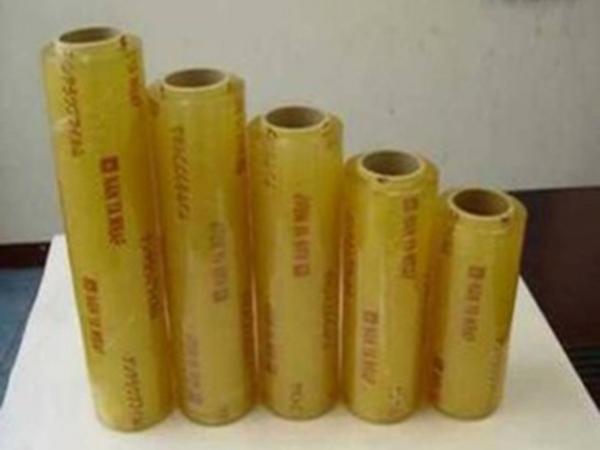

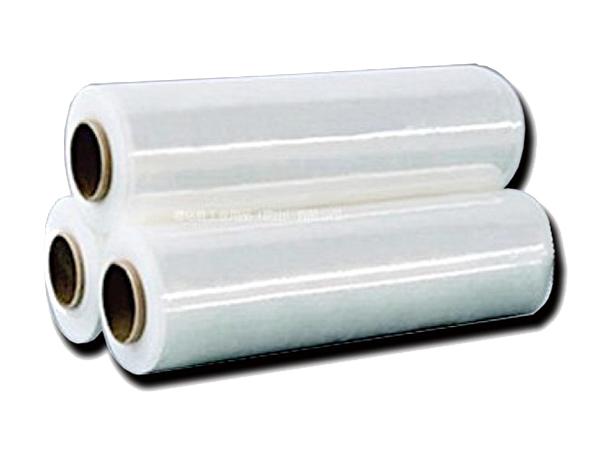

Fully automatic perforating and rewinding machine is applied to rewinding PE and PVC preservative film used in hotel. This perforating and rewinding machine is remoulded on fully automatic stretch film rewinding machine and so this machine has the function of perforating. This perforator rewinder can perforate while the machine is rewinding.

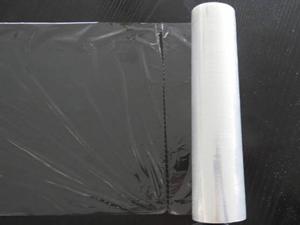

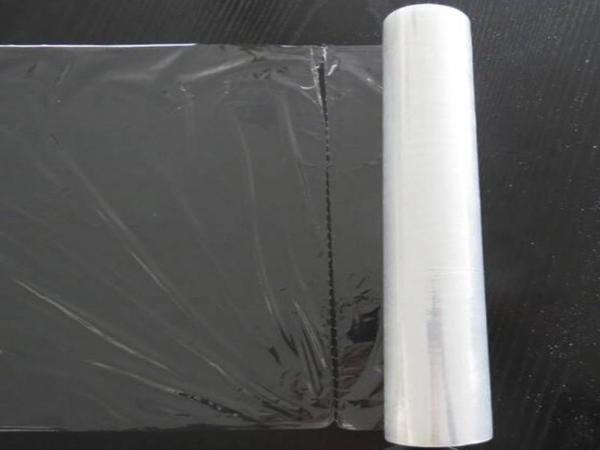

The product can be easily split. And this new way of packing can reduce the cost because you don't need the toothed cutter and slitter.

  • Fully Automatic Perforating and Rewinding Machine
  • Fully Automatic Perforating and Rewinding Machine
  • Fully Automatic Perforating and Rewinding Machine
Parameters
Model HTR-D500
Width of mother roll 300-500mm
Width of finished roll 300-500mm
Speed 600m/Min
Mother roll diameter Max 400mm
Finished roll diameter Max180mm
Core of mother roll 3"
Core of finished roll 3", 2"(width of paper tube≥4mm)
Distance of perforating line Customized, Min150mm
Dimension 1350*1400*1500/mm
Net weight 700KG

Features
1. There is higher work efficiency because of cycling rewinding.
2. This perforating and rewinding machine has control system consisting of PLC, human-computer interface and frequency changer. So this machine has high level of automation.
3. It's humanization that the chuck can shut down without paper tube automatically and the paper tube bucket can alarm without paper tube automatically.
4. It's servo control system to control the distance of perforating line so you can set the value freely.

Support
Wintech has researched and developed the slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
