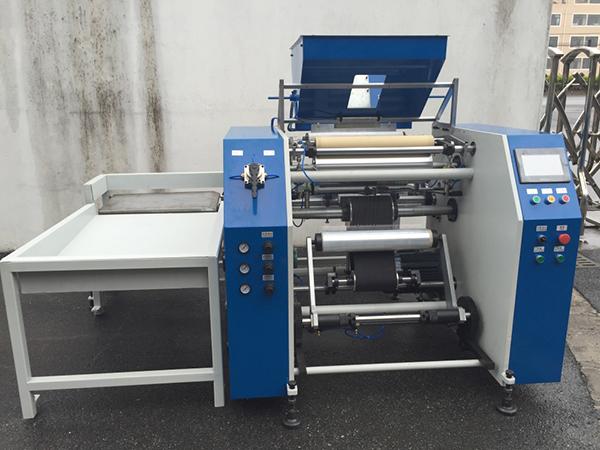

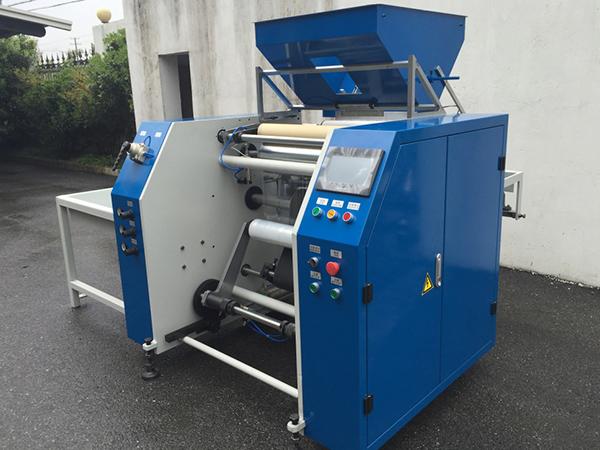

Fully Automatic High Speed Stretch Film Rewinding Machine

  • Fully Automatic High Speed Stretch Film Rewinding Machine
  • Fully Automatic High Speed Stretch Film Rewinding Machine

Application

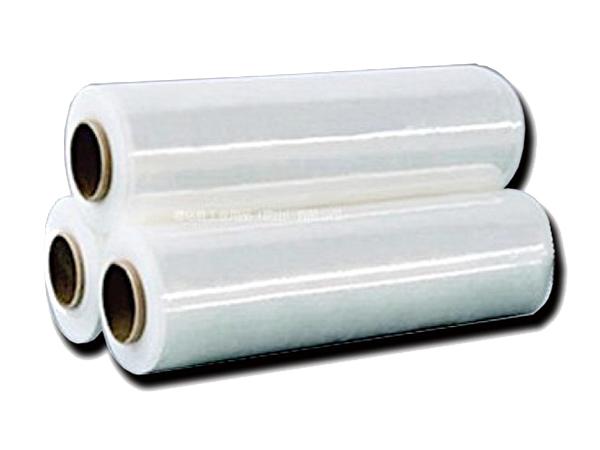

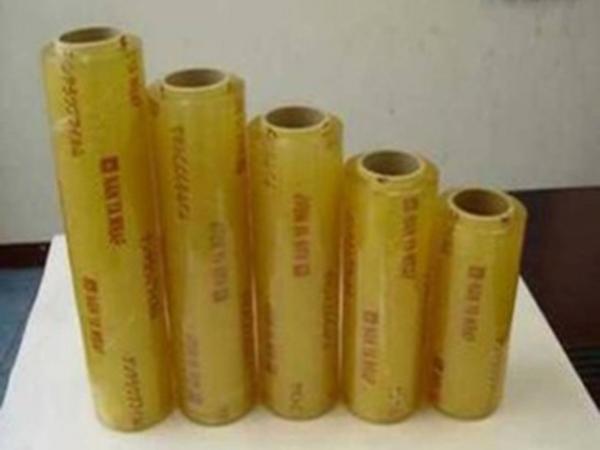

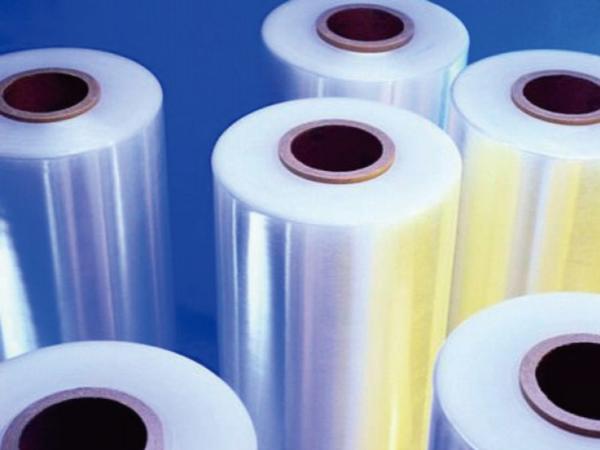

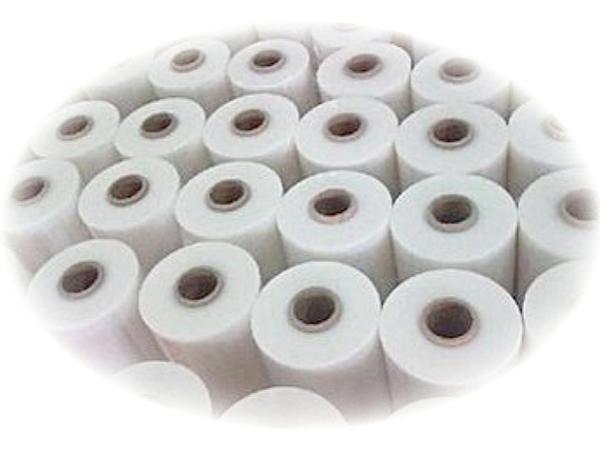

Fully automatic high speed stretch film rewinding machine is used to rewind stretch film, preservative film and so on. And it can also rewind the big roll into some small roll with same width.

This type of machine is remoulded on fully automatic stretch film rewinding machine. This rewinding machine has higher revolving speed and its fastest linear speed can reach up to 1200m/min for meeting customer's request.

  • Fully Automatic High Speed Stretch Film Rewinding Machine
  • Fully Automatic High Speed Stretch Film Rewinding Machine
  • Fully Automatic High Speed Stretch Film Rewinding Machine
  • Fully Automatic High Speed Stretch Film Rewinding Machine
Parameters
Model HTR-H500
Width of mother roll 300-500mm
Width of finished roll 300mm-500mm
Speed 1200m/Min
Mother roll diameter 500mm
Finished roll diameter Max160mm
Core of mother roll 3"
Core of finished roll 3", 2"(width of paper tube≥4mm)
Dimension 1350*1400*1500/mm
Net weight 700KG

Features
1. This rewinding machine has control system consisting of PLC, human-computer interface and frequency changer. So this machine has high level of automation.
2. The human-computer interface supports the manual operation and has the displayer to display information. It's very easy for you to use it and to detect the malfunction.
3. This rewinder can get pipes down, replace the roll core, slit the film and blank automatically.
4. The finished product has no scratches by the cylinder linking with bracket.
5. You can choose to buy conveyor. And our machine allows one people to operate and box the finished product.
6. There is higher production efficiency and lower cost because the feature of high speed rewinding.

Wintech has researched and developed the slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
