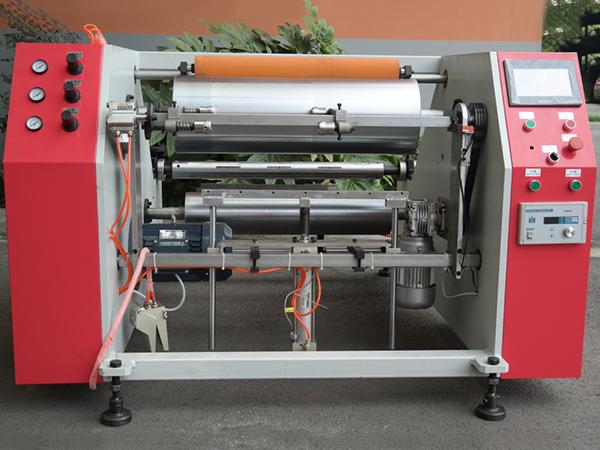

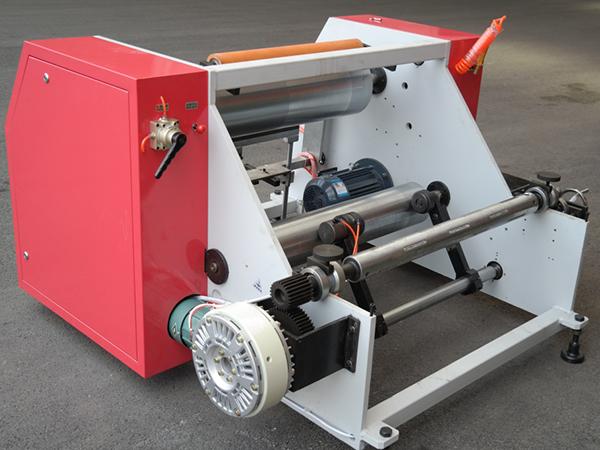

This rewinding machine is remoulded on the semi-automatic aluminum foil rewinding machine. It's the dual-purpose machine that can be used to rewind aluminum foil and cling film. But this rewinding machine doesn't have the slitting function.
The customer can choose the pattern of rewinding aluminum foil or rewinding cling film in program. It's the dual-purpose feature that reduces cost.Parameters
A: Aluminum foil
1: Width of mother roll 600mm(max)
2: Mother roll diameter 700mm(max)
3: Winder width10-600mm( adjustable)
4: Winder diameter 85mm(max)
5: Core of mother roll 3"(I.D)
6: Core of winder cutomized(additional expense if more than three winder)
7: Main motor power 2.2KW
8: Frequency changer 2.2KW
9: Tilt motor 0.37KW
10: Frequency changer 0.75KW
11: Magnetic powder brake10KG
12: Tension control
13: Frequency changer, PLC inverter, PLC
14: Air shaft (mother roll winding)
15: Using collet sleeve to wind which is easily replaced
B: Cling film
1: Width of mother roll 300mm(max)
2: Mother roll diameter 500mm(max)
3: Core of mother roll 3"
4: Width of winder 300mm(max)
5: Core of winder(additional expense if more than three winder)
6: Winder diameter 85mm
7: Chuck of winding mother roll
8: Roller of winging mother roll
9: Left and right motor
10: Appliance is same as the aluminum foil rewinder except left and right motor
11: Touch the aluminum foil or cling film in touch screen to rewind the different fabric.
Our company has researched and developed this rewinding machine about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
