Applicaton

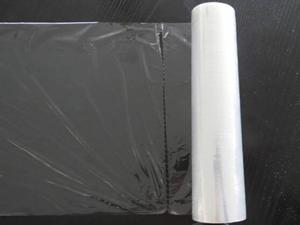

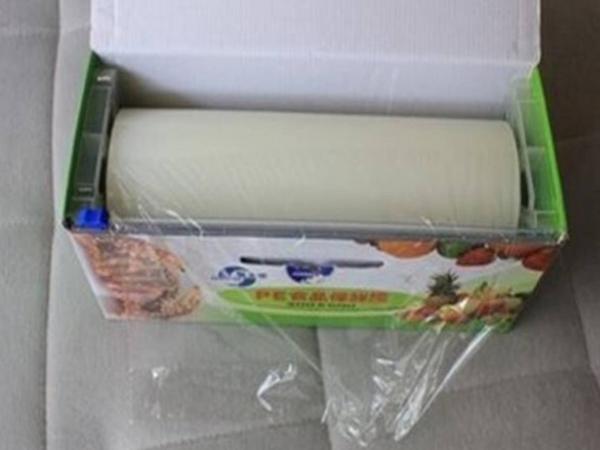

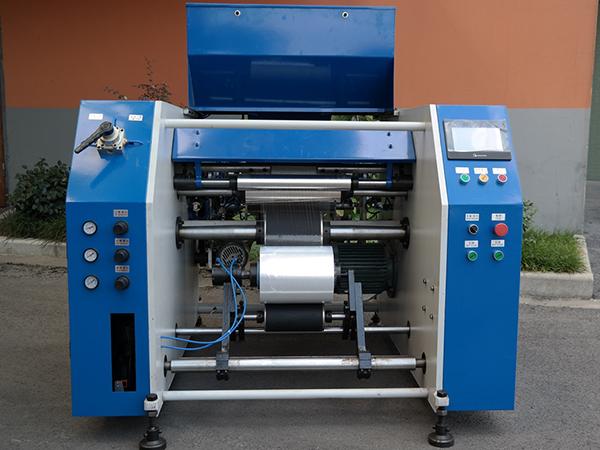

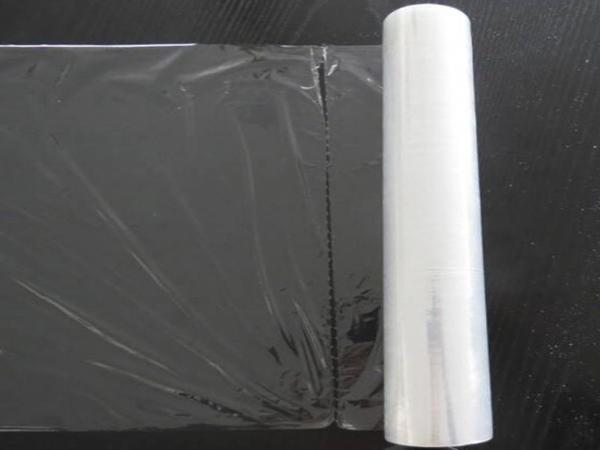

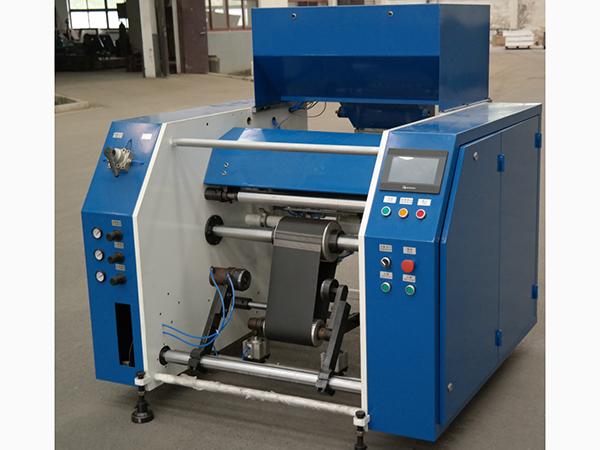

Fully automatic five shaft perforator rewinder is applied to rewinding the food fresh-keeping film. This perforator rewinder is remoulded on fully automatic five shaft rewinder so this machine has the function of perforating. This perforating rewinding machine can perforate the film when rewinding and there is higher efficiency that the three shaft perforator rewinder. The distance of perforating line can be set in program. What's more, the product can be easily split and this new way of packing can reduce the cost because you don't need the toothed cutter and slitter.

Parameters
Model HTR-D300
Width of mother roll 200-300mm
Width of finished roll 200-300mm
Speed Max8rolls(30m/roll)/min
Mother roll diameter Max 500mm
Length of finished roll Min8m-Max120m
Core of mother roll 3"
Core of finished roll Outside diameter 34-44mm
Distance between perforating line Customized, Min150mm
Dimension 1350*1265*1450/mm
Net weight 700KG

Features
1. There is higher work efficiency because of cycling rewinding with five shafts.
2. This perforating and rewinding machine has control system consisting of PLC, human-computer interface and frequency changer. So this machine has high level of automation.
3. It's humanization that the chuck can shut down the machine automatically if there is no paper tube, and the paper tube bucket will alarm automatically when there is lack of paper tube.
4. It's servo control system to control the distance of perforating line so you can set the value freely.

Our company has researched and developed this perforator rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
