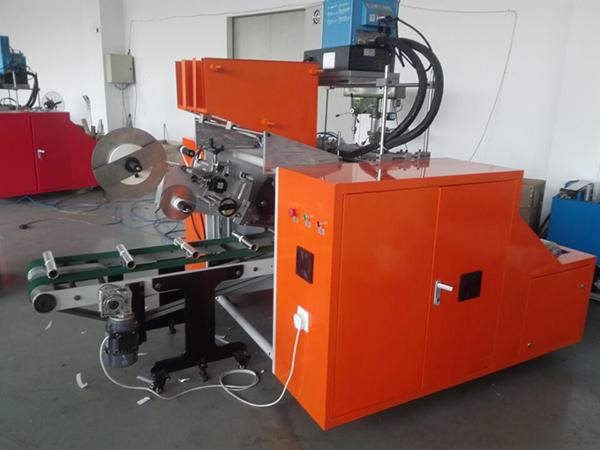

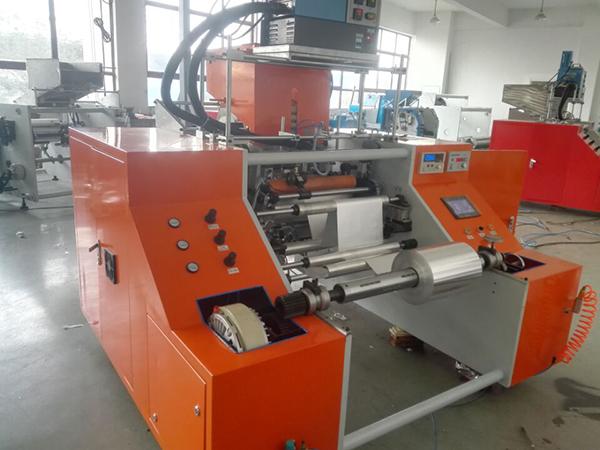

Fully Automatic Six Shaft Aluminum Foil Rewinding Machine

  • Fully Automatic Six Shaft Aluminum Foil Rewinding Machine
  • Fully Automatic Six Shaft Aluminum Foil Rewinding Machine
  • Fully Automatic Six Shaft Aluminum Foil Rewinding Machine

Application
This rewinding machine is used to rewind the aluminum food foil and slit the jumbo roll into multiple finished products with same width.

This rewinding machine is the fully automatic model and has six shafts to rewind foil automatically. Compared with semi-automatic model, this machine has higher product efficiency and low human cost. What's more, this rewinder has touch panel of PLC and frequency changer. So you can set different values about velocity and meter.

  • Fully Automatic Six Shaft Aluminum Foil Rewinding Machine
  • Fully Automatic Six Shaft Aluminum Foil Rewinding Machine
  • Fully Automatic Six Shaft Aluminum Foil Rewinding Machine
Parameters
Model HTR-F450
Width of mother roll Max450mm
Width of finished roll Max450mm
Speed Max300m
Mother roll diameter 600mm
Finished roll diameter Max70mm
Core of mother roll 3"
Core of finished roll 30-40mm
dimension 1700*1350*1000/mm
Net weight 800KG

Features

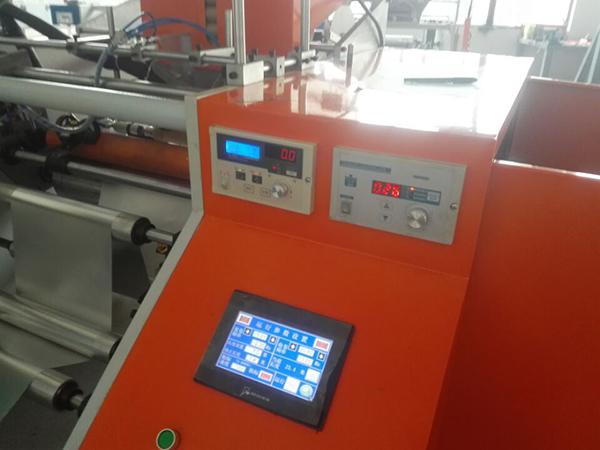

1.This rewinding machine has control system consisting of PLC, human-computer interface and frequency changer. So this rewinder has high level of automation.
2.The cylinder chuck adopts the automatic tension control of magnetic powder. So it's easy to make sure that the finished roll is smooth.
3.This rewinding machine can slit and ture over the paper automatically. It also use six shafts to cycling rewinding paper. So it has high level of automation and great product efficiency.

Our company has researched and developed this rewinding machine about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
