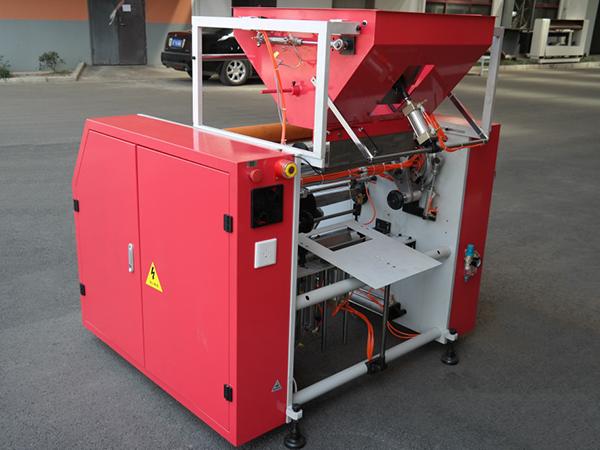

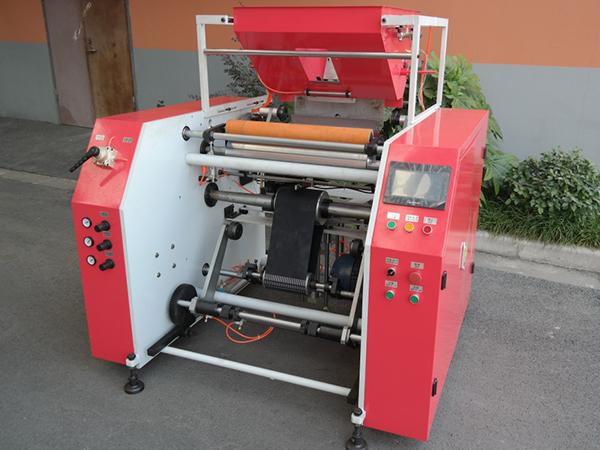

Fully Automatic Three Shaft Stretch Film Rewinding Machine

  • Fully Automatic Three Shaft Stretch Film Rewinding Machine
  • Fully Automatic Three Shaft Stretch Film Rewinding Machine

Application
This stretch film rewinding machine is exclusively used to rewind PE or PVC preservative film. This type of machine is remoulded on fully automatic stretch film rewinding machine. It greatly improves the efficiency of rewinding by using three shafts to cycling rewinding. What's more, this model is our patented product.

  • Fully Automatic Three Shaft Stretch Film Rewinding Machine
  • Fully Automatic Three Shaft Stretch Film Rewinding Machine
  • Fully Automatic Three Shaft Stretch Film Rewinding Machine
Parameters
Model HTR-H500
Width of mother roll 300-500mm
Width of finished roll 300-500mm
Speed 1200/min
Mother roll diameter 400mm
Finished roll diameter Max 150mm
Core of mother roll 3"
Core of finished roll 3", 2"(width of paper tube≥4mm)
Dimension 1350*1400*1500/mm
Net weight 750KG

Features
1. This stretch film rewinding machine uses three shafts to cycle rewinding so there is higher work efficiency.
2. The rewinding machine has control system consisting of PLC, human-computer interface and frequency changer. So this machine has high level of automation.
3. This rewinder can get pipes down, replace the roll core, slit the film and blank automatically.
4. The finished product has no scratches by the cylinder linking with bracket.
5. You can choose to buy conveyor. And our machine allows one people to operate and box the finished product.
6. There is higher production efficiency and lower cost because of the high speed rewinding.
7. It's humanization that the chuck can shut down without paper tube automatically.

Our company has researched and developed the slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
