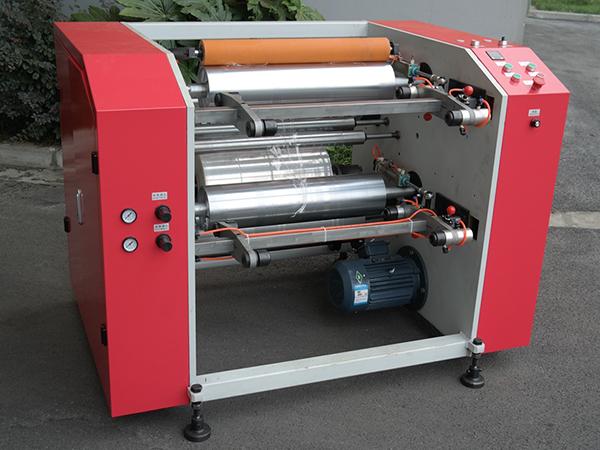

Semi-automatic Four Shaft Slitter Rewinder

  • Semi-automatic Four Shaft Slitter Rewinder
  • Semi-automatic Four Shaft Slitter Rewinder
  • Semi-automatic Four Shaft Slitter Rewinder

Description

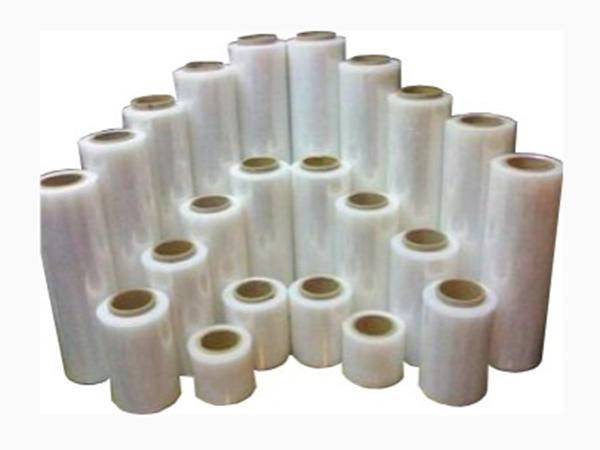

Semi-automatic four shaft slitter rewinder has both slitting and rewinding function. This slitter rewinder can rewind the big roll diameter film into some same and small roll diameter films or silt that into small but different roll diameter films. In addition, this machine can improve the appearance smoothness of coiled material, rectify the split-level and slit the mistake of printing and recombination by slitting or rewinding.

This type of machine is remoulded on the type of semi-automatic slitter rewinder. By both upper and lower shafts rewinding, this slitter rewinder can improve work efficiency but has harder operability.

Parameters
Type HTS-A500 / 1000
Width of mother roll 500/1000mm
Width of finished roll Min50mm-Max500/1000mm
Speed 0-600m/Min
Mother roll diameter Max 400mm
Finished roll diameter Max 150mm
Core of mother roll 3"
Core of finished roll 3", 2", 1.5:(width of paper tube≥4mm)
Dimension 1130*1450*1100/mm
Net weight 750KG

Features
1. Simple mechanical configuration, easy operation.
2. This slitter rewinder has high revolving speed by frequency converting control.
3. This machine can do rewinding for film without paper core by disassembing and assembing parts of fittings.

Wintech has researched and developed the slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
