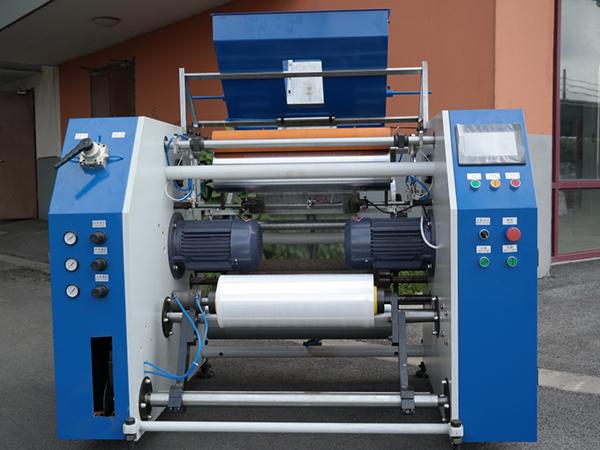

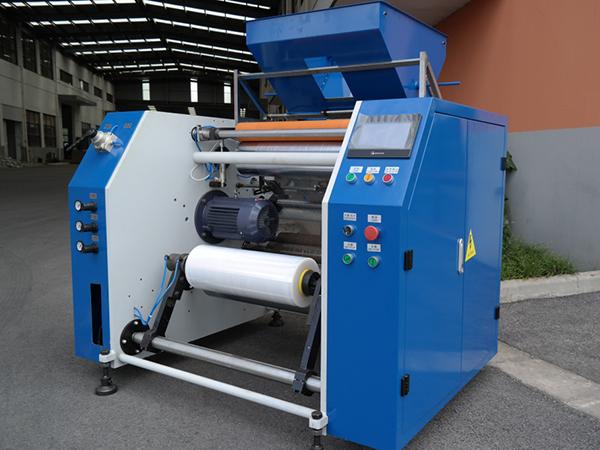

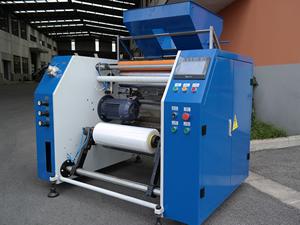

Fully Automatic Pre-Stretch Film Rewinding Machine

  • Fully Automatic Pre-Stretch Film Rewinding Machine
  • Fully Automatic Pre-Stretch Film Rewinding Machine
  • Fully Automatic Pre-Stretch Film Rewinding Machine
  • Fully Automatic Pre-Stretch Film Rewinding Machine

Description
Besides the function of rewinding, this pre-stretch film rewinding machine also has the function of pre-stretch. Different gear means different draw ratio, so the film can be stretched into different width and thickness.

Parameters
Model HTR-E600
Width of mother roll Max600mm
Width of finished roll 300mm-600mm
Speed 600m/Min
Mother roll diameter Max 400mm
Finished roll diameter Max 180mm
Core of mother roll 3"
Core of finished roll 3", 2"(width of paper tube≥4mm)
Dimension 1450*1400*1500/mm
Net weight 700KG

Features
1. This rewinding machine has control system consisting of PLC, human-computer interface and frequency changer. So this machine has high level of automation.
2. The human-computer interface supports the manual operation and has the displayer to display information. It's very easy for you to use it and to detect the malfunction.
3. This rewinding machine can get pipes down, replace the roll core, slit the film and blank automatically.
4. You can choose to buy conveyor. And our machine allows one people to operate and box the finished product.

Our company has researched and developed the slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
