Non-woven Fabric Slitter Rewinder
Description

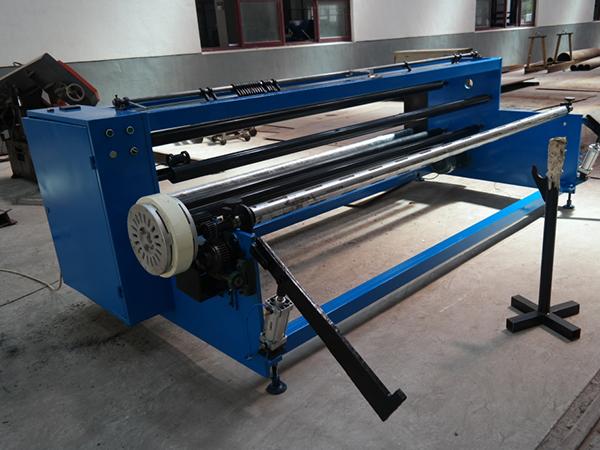

This non-woven fabric slitter rewinder is used to slit and rewind the fabric of non-woven, shopping bag and so on. It can slit the big roll into multiple finished rolls with same width.
The procession of rolling up and down is manual. The regular width of this machine is 1600mm but it can be customized.
Parameters| Model | |
| Width of mother roll | 1600mm |
| Width of finished roll | 20-1600mm |
| Speed | Max300m |
| Mother roll diameter | Max500mm |
| Finished roll diameter | Max500mm |
| Core of mother roll | 3" |
| Core of finished roll | 3" |
| dimension | 2650*1350*1000/mm |
| Net weight | 650KG |
Features
1. Because of simple structure, this slitting rewinding machine can be controlled and used easily.
2. This slitter rewinder has high revolving speed by adopting frequency converting control.
3. The finished product is smooth by the devices such as air shaft and automatic magnetic powder controller.
Wintech has researched and developed this slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
