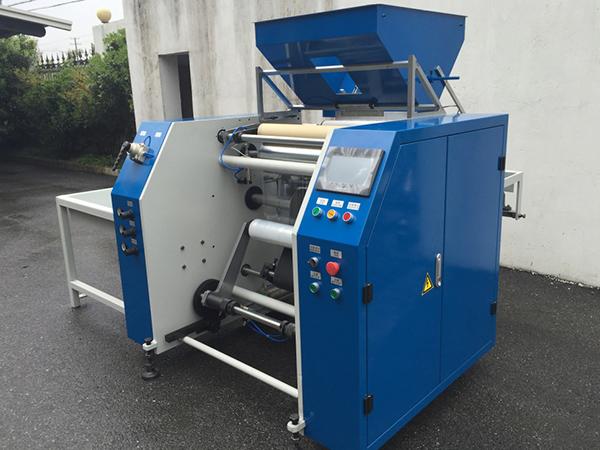

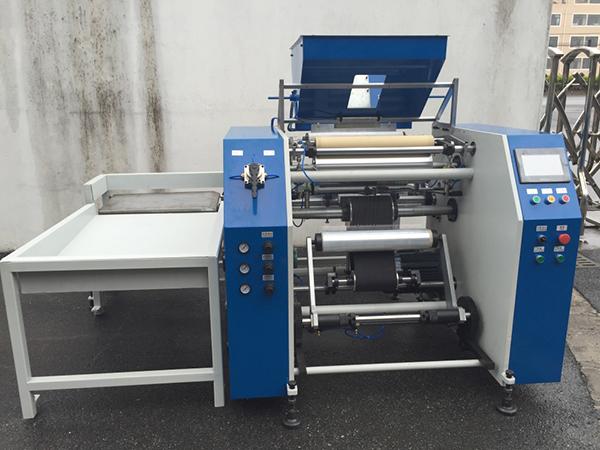

Fully Automatic Stretch Film Rewinding Machine

  • Fully Automatic Stretch Film Rewinding Machine
  • Fully Automatic Stretch Film Rewinding Machine

Description
Fully automatic stretch film rewinding machine can be used to rewind preservative film and stretch film and make them from big roll into some same width roll.

This type of rewinding machine is the most mature fully automatic type in our company. Meanwhile, the operability of this machine is easiest. The width of this machine can be ordered by customer's request. This reminding machine is applied to rewinding roll which is long and made of PE or PVC.

  • Fully Automatic Stretch Film Rewinding Machine
  • Fully Automatic Stretch Film Rewinding Machine
  • Fully Automatic Stretch Film Rewinding Machine
Parameters
Model HTR-R500
Width of mother roll 300-500mm
Width of finished roll 300mm-500mm
Speed 900m/Min
Mother roll diameter 400mm
Finished roll diameter Max180mm
Core of mother roll 3"
Core of finished roll 3", 2"(width of paper tube≥4mm)
Dimension 1350*1400*1500/mm
Net weight 700KG

Features
1. This stretch film rewinder has control system consisting of PLC, human-computer interface and frequency changer. So this machine has high level of automation.
2. The human-computer interface supports the manual operation and has the displayer to display information. It's very easy for you to use it and to detect the malfunction.
3. This rewinder can get pipes down, replace the roll core, slit the film and blank automatically.
4. The finished product has no scratches by the cylinder linking with bracket.
5. You can choose to buy conveyor. And our machine allows one people to operate and box the finished product.

Our company has researched and developed the slitter rewinder about 20 years and we have very professional technical team. Our technical staffs all have rich operational experience and can deal with different situations. All types of machine have one year free warranty and except for some particular equipment, we provide the fittings freely to replace the broken ones. In addition, our engineer can go to your workplace if necessary. In order to eliminate both sides' trouble, our machines are all examined more than three times by the professional engineer before sales.
